Description
| Ref. No | D1 (max) mm | d mm | b mm | H mm | D2 mm | h mm | c mm |
|---|---|---|---|---|---|---|---|
| FE1 | 6.6 | 4 | 5.2 | 6 | 8 | 4 | 4 |
| FE2 | 7.1 | 3.8 | 5.5 | 7 | 9.2 | 5.3 | 2.2 |
| FE3 | 7.5 | 4 | 5 | 8 | 10 | 6 | 6 |
| FE4 | 9.1 | 6 | 7.4 | 7 | 11 | 5 | 3 |
| FE5 | 9.8 | 4 | 6.1 | 12.5 | 12 | 7.5 | 4 |
| FE6 | 10 | 6 | 7.7 | 10 | 12 | 8 | 6 |
| FE7 | 11.6 | 5 | 8.5 | 15 | 15 | 10 | 6.6 |

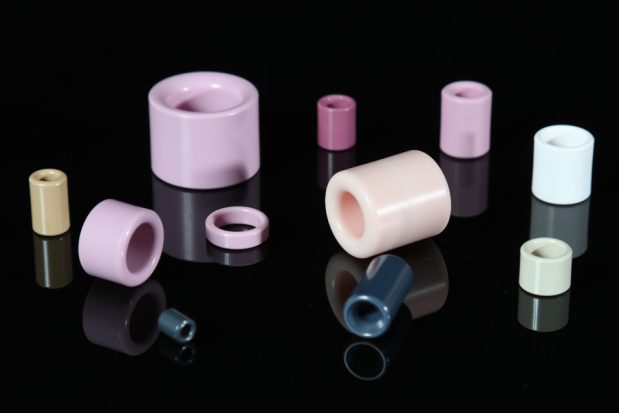

Flared Eyelets
For use in creel tubes and spindles. Use diagram and table below for sizes
