DT27S – Disc Tensioner

Disc Tensioner – simple device to add tension to a yarn or fibre; the yarn passing between two discs.

Click on the magnifying glass to view an enlarged drawing.

Description

DT27S disc tensioner is made with a plastic bracket with built in balloon disc. We offer several standard options. This version has 27mm diameter metal tension discs and a metal split post. This tensioner comes fitted with a spring clip on the base for easy fixing. For a similar tensioner with ceramic discs and a ceramic split center post, please see DT27C.

Usually available from stock.

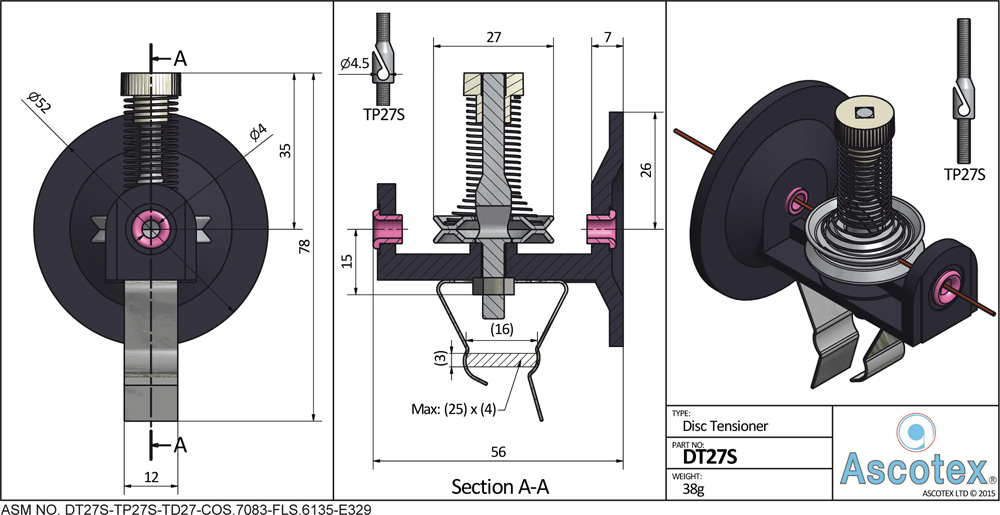

DT27S Drawing
