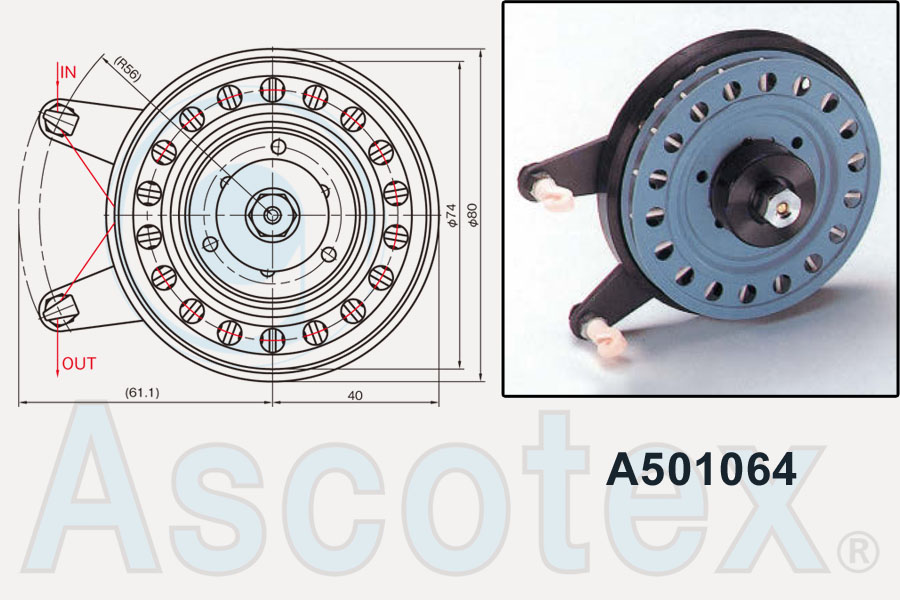

A501064 – Hysteresis Tensioner

Consisting of a 64 mm diameter wheel able to rotate with the yarn, which can be braked by a magnet to adjust the tension.  Tension adjusted by rotating the black cylinder.

Click on the magnifying glass to view an enlarged drawing.
